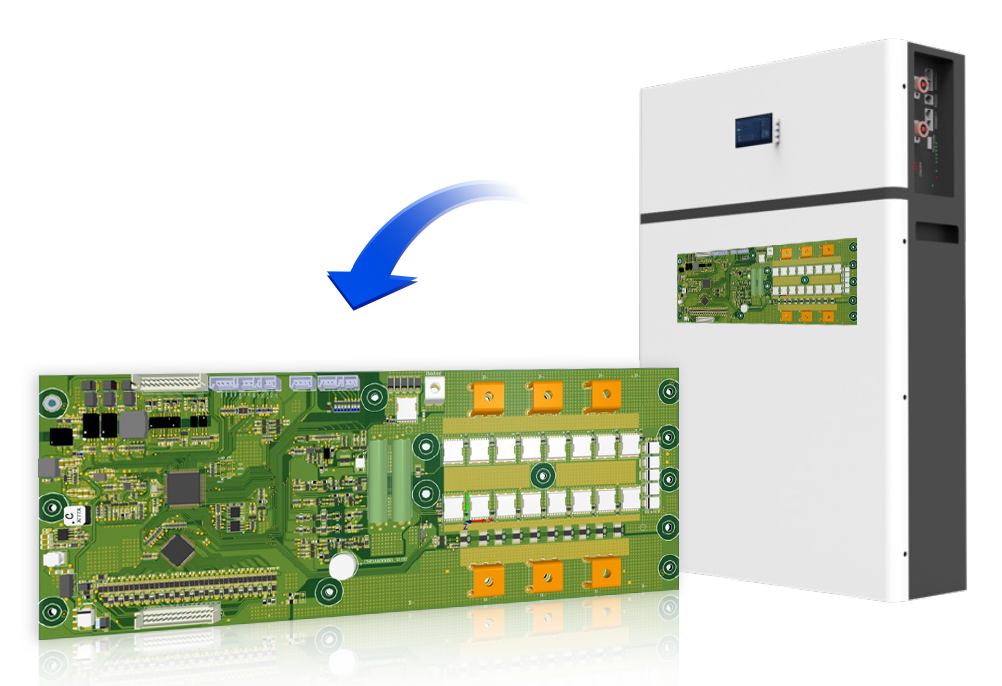

Product Details

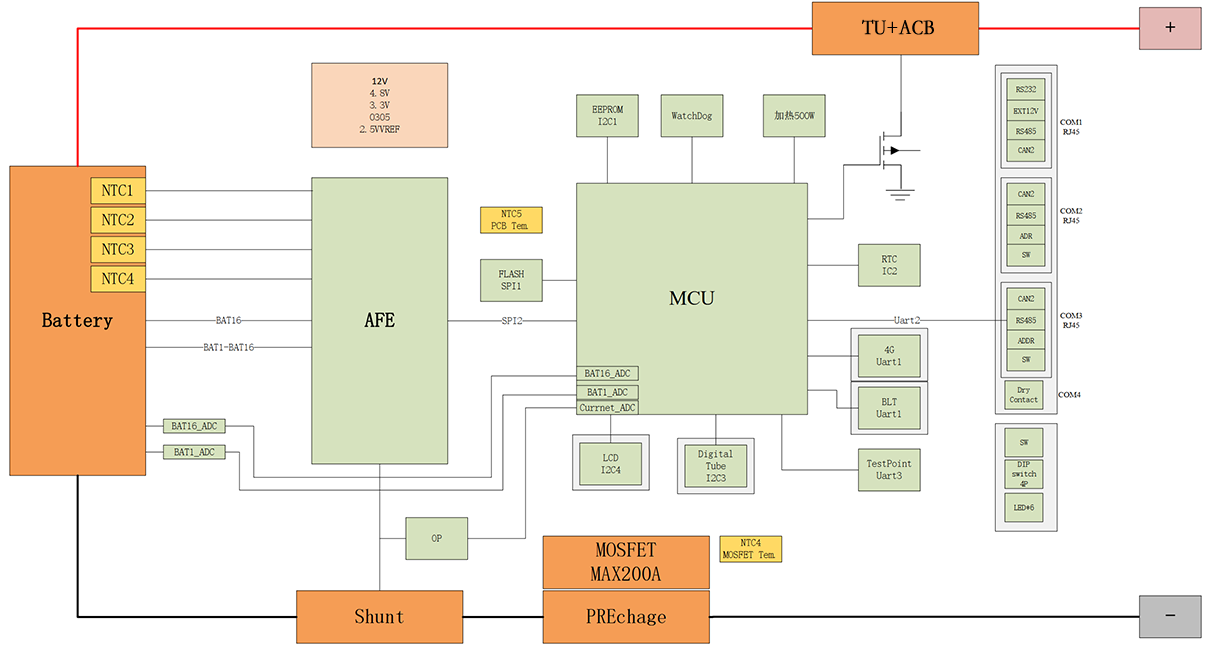

Application Topology
Product Specification
Norm
Parameters
Model
APL-EVP-P100S16
APL-EVP-P200S16
Battery cell system
Lithium iron phosphate / Ternary lithium / Lithium titanate
Battery cell strings
Adaptive 15 string /16 string
Individual voltage acquisition accuracy
±5 mV
Accuracy of battery total pressure collection
±0.5% @FSR
Accuracy of current collection
1% @FSR
Cell temperature acquisition channel
4 channels
Max charging current
100A
200A
Max discharge current
100A
200A
Capacitive load
60000 uF
Working temperature range
-30°C ~ 80°C
Suggested working temperature
-30°C ~ 70°C
Storage conditions(Temperature)
-20°C ~ 45°C
Storage conditions(Humidity)
5% ~ 95% RH
Cooling
Natural cooling
Dimension
W300×D113×H18 mm
PACK safety certification
Support customization IEC62619 / CE / RCM / UL1973 / CEC
Communication port
CAN2.0B*2CH，RS485*1CH，Bluetooth，4G
Dry contact
2 channels
Parallel connection
15 PACKs
Atitude
3000 m
Self consumption power
Operating <50mA, Sleeping <200uA
Support for Optional Modules

4G(OTA)

Bluetooth

Heating module
MAX 500W Heating Power
LED display

TFT color Screen

LED light
Running Light: 1pcs，Green
Fault Light: 1pcs，Red
SOC Light：4pcs，Blue
**If the dimensions and parameters of the product differ from the product specification, the actual delivery shall prevail.
