Apower^® HH-5.12 KWh Wall-mounted Household ES

· Lithium iron phosphate battery, safe and reliable with long cycle life
· 2500W charge/discharge power, up to 5000W
· Built-in BMS with three-level protection (overcharge, over-discharge,
over-temperature alarms) and comprehensive safety functions

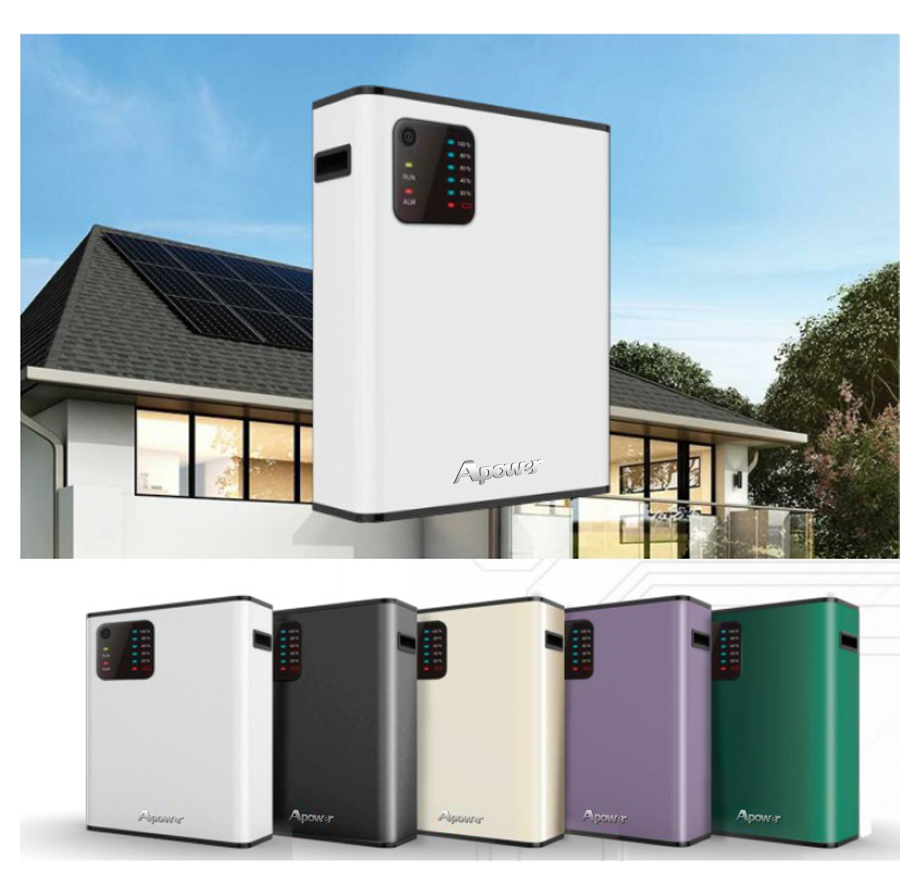

· Sleek minimalist design, available in multiple colors

5.12KWh

Ultra-large
battery capacity

5000W

Maximum supported
charge/discharge power

8 pcs

Parallel capacity
expansion

Product Details

Application Scenarios

Ensure power supply using self-stored energy during power outages

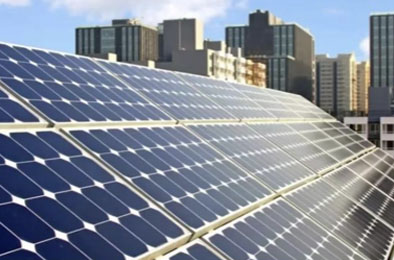

Achieve clean energy supply in conjunction with solar panels

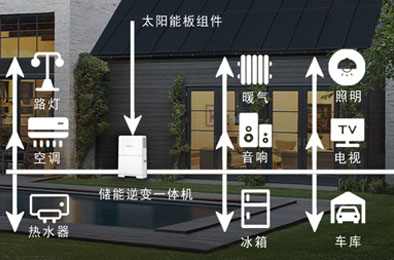

Guarantee uninterrupted operation of home appliance systems

Product Specifications

Model

HH-5.12KW

Nominal Voltage

52.1 Vdc

Nominal Capacity

100 Ah

Battery Energy

5120 Wh

Charge Voltage

55.68 ~ 56.16 Vdc

Discharge Voltage

45.6 ~ 56.16 Vdc

Nominal Charge/Discharge Current

50 A

Nominal Charge/Discharge Power

2500 W

Max Charge/Discharge Current

100 A

Max Charge/Discharge Power

5000W

Short Circuit Current

350 A

Display

SOC Status Light,LED Light

Communication

RS485,CAN

Dimension(W*D*H)mm

530×450×135 mm

Weight(kg)

46 kg

Working Temperature

-15°C ~ 55°C

IP Rating

IP20

Cell Technology

LiFePO4

Cycle life

6000Cycles @80%DOD /25ºC / 0.5C charge,discharge / 60%EOL

Scalability

Max 8 batteries in parallel

Certification

UN38.3, IEC 62619, IEC 61000, CE, TUV, UL9540A / UL9540 / UL1973

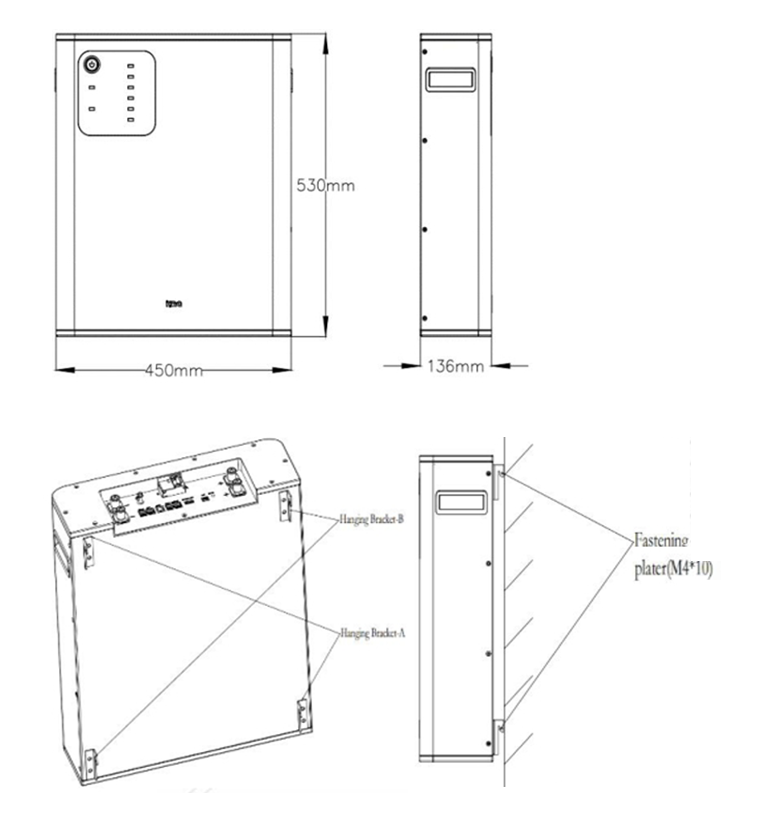

Product Dimensions
